Why Build a Kubernetes Homelab?
Why?
Two reasons drove me to build this cluster.
Reason 1: Learning by Doing
Cloud-managed Kubernetes (EKS, GKE) abstracts away the parts I wanted to understand: CNI networking, storage orchestration, GPU scheduling, immutable OS operation, and GitOps at the infrastructure layer. You can read about eBPF kube-proxy replacement or DRA-based GPU sharing all day — or you can break it, fix it, and actually learn it.
The goal was never “run a production cluster at home.” It was to build one that could be production, so the skills transfer directly.
Reason 2: Self-hosted Infrastructure
As a solo builder, I want self-hosted infrastructure for:
- AI/ML workloads — local inference with GPUs, fine-tuning, experiments
- Self-hosted services — things I’d otherwise pay SaaS for
- Product prototyping — test deployments before going to cloud
The hardware was already sitting around. The cluster turns idle machines into a platform.
The Hardware
The cluster spans 4 zones of heterogeneous hardware:
Zone A: Management
- raspi-omni (Raspberry Pi 5, 8GB) — Runs Sidero Omni, Authentik SSO, Traefik. The management plane lives outside the cluster.
Zone B: Core HA
- mini-1, mini-2, mini-3 (ASUS NUC, Intel Ultra 5 225H, 64GB RAM, 1TB NVMe) — Three identical nodes forming the HA control plane. Each has an Intel Arc iGPU for future media/AI workloads.
Zone C: AI Compute
- gpu-1 (Custom desktop, i9, 128GB RAM, RTX 5070, 2x4TB SSD) — The heavy lifter. Dedicated GPU storage via Longhorn. Tainted for GPU-only workloads.
Zone D: Edge
- pc-1 (Legacy desktop, 64GB SSD + 3x HDD) — General purpose worker.
- raspi-1, raspi-2 (Raspberry Pi 4, 32GB SD) — Low-power edge nodes.
Architecture
The cluster uses a two-layer management model:

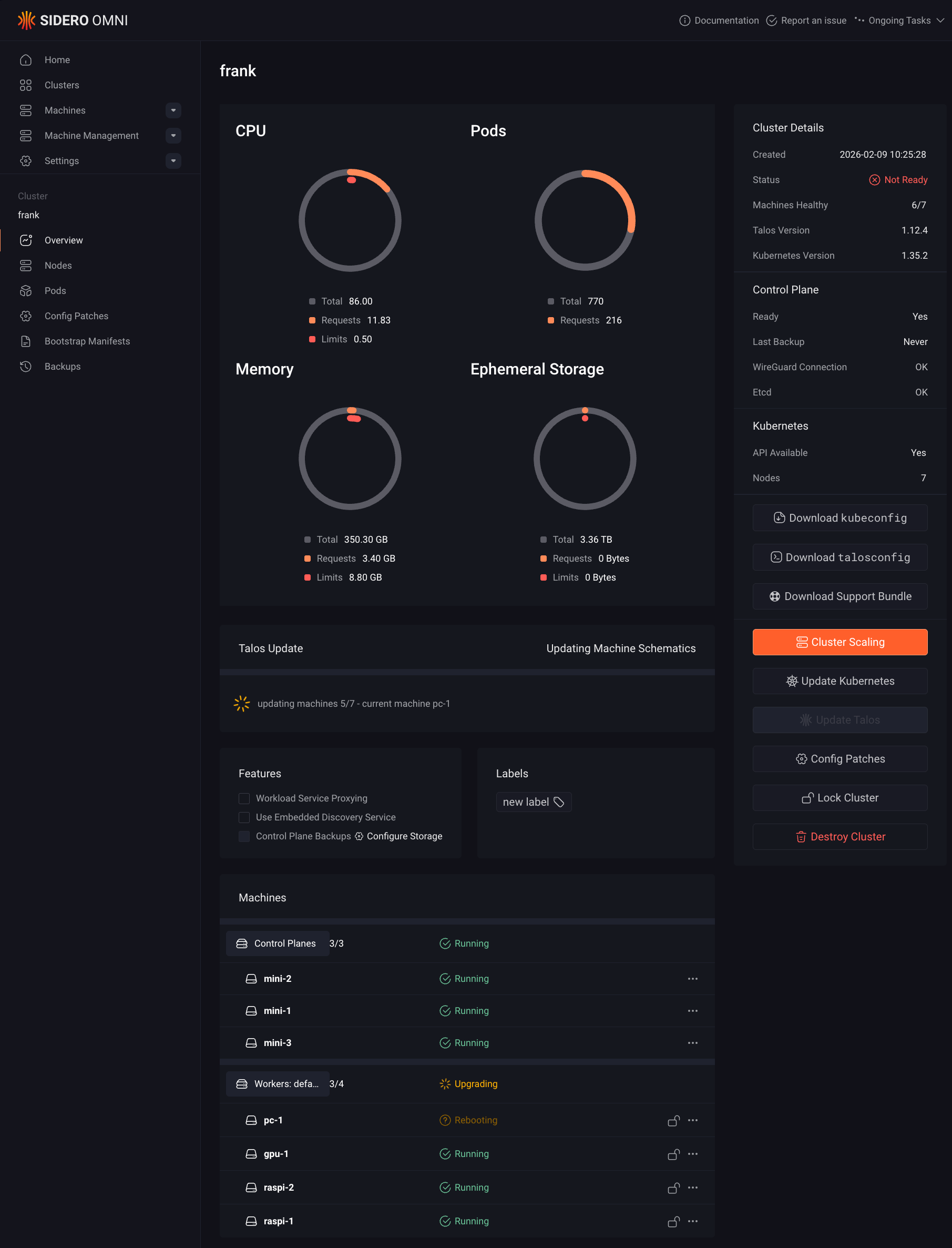

- Layer 1 (Machine Config): Sidero Omni manages Talos Linux machine configurations — OS extensions, kernel modules, disk mounts, network settings. Applied via
omnictl. - Layer 2 (Workloads): ArgoCD manages everything running on Kubernetes — CNI, storage, GPU drivers, applications. GitOps via the same repo you’re reading.
This separation means Omni never touches workloads, and ArgoCD never touches machine config. Clean boundaries, no conflicts.
What’s Next
The rest of this series walks through each capability layer:
1 Hardware — 7 Nodes, 3 Zones
3x Intel NUC (Core zone)
1x GPU tower — RTX 5070
1x Legacy desktop
2x Raspberry Pi 4
2 OS & Bootstrap
Talos Linux (immutable)
Sidero Omni (lifecycle)
Declarative machine config
Rolling upgrades
3 Networking — Cilium CNI
eBPF kube-proxy replacement
L2 LoadBalancer (ARP)
Hubble observability
Network policy
4 Storage — Longhorn
Distributed 3-replica block storage
GPU-local StorageClass
2x 4TB SSD on gpu-1
iSCSI via Talos extensions
5 GPU Compute
NVIDIA GPU Operator (RTX 5070)
Intel DRA driver (Arc iGPU)
Dynamic Resource Allocation
CDI device injection
6 GitOps — ArgoCD
App-of-Apps pattern
Multi-source Applications
Self-healing + drift detection
Zero-downtime adoption
7 Fun Stuff
OpenRGB via USB HID
DaemonSet + ConfigMap
Custom container build (GitHub Actions)
IT5701 firmware lock (in progress)
8 Observability
VictoriaMetrics (metrics + alerts)
VictoriaLogs (log aggregation)
Grafana dashboards
Fluent Bit log shipping
Blackbox Exporter (endpoint probes)
Pushgateway (heartbeat ingestion)
Telegram alerting
Health Bridge (GitHub lifecycle)
9 Backup
Longhorn → Cloudflare R2
Daily + weekly recurring jobs
SOPS-encrypted credentials
NAS target (pending Longhorn 1.13)
10 Secrets Management
Infisical (self-hosted vault)
External Secrets Operator
ClusterSecretStore
ExternalSecret → K8s Secret
11 Local Inference
Ollama (gpu-1, RTX 5070)
LiteLLM (unified gateway)
OpenRouter (free cloud models)
OpenAI-compatible API
12 Agentic Control Plane
Sympozium (K8s-native agents)
n8n (per-user workflow automation)
VK Remote (self-hosted kanban API)
ElectricSQL real-time sync
13 Unified Auth
Authentik IdP (OIDC + proxy)
SSO for ArgoCD, Grafana, Infisical
Forward auth for Longhorn, Hubble, Sympozium
OIDC-backed kubectl via apiserver
14 Multi-tenancy
vCluster (K8s-in-K8s)
Disposable experiment clusters
Resource quotas + network policies
GitOps-provisioned via ArgoCD
15 AI Agent Orchestrator
Paperclip (org-chart agents)
Virtual companies + budgets
Delegation chains + governance
LiteLLM gateway integration
16 Media Generation
ComfyUI (diffusion models)
LTX-2.3 video, SDXL image, Stable Audio
GPU Switcher dashboard (Go)
Time-sharing via replica scaling
17 Public Edge — Hop
Hetzner CX23 (single-node Talos)
Headscale mesh + Tailscale
Caddy reverse proxy + TLS
Split-DNS (MagicDNS)
18 Persistent Agent
Kali Linux workstation
Always-on Claude Code agent
SSH remote access
50Gi persistent /root
19 Progressive Delivery
Argo Rollouts controller
LiteLLM canary (Cilium traffic split)
Sympozium blue-green
VictoriaMetrics analysis gates
21 Secure Agent Pod
Hardened non-root Kali container
Cilium egress allowlist
VibeKanban agent orchestration
VK Relay (WebSocket tunnel to browser)
24 In-Cluster Ingress
Traefik v3 on raspi edge nodes
Wildcard TLS (*.cluster.derio.net)
Authentik forward-auth (12 services)
Homepage dashboard
25 CI/CD Platform
Gitea (GitHub mirror forge)
Tekton Pipelines + Triggers
Zot OCI registry (cosign signed)
Webhook-driven CI on pc-1
26 Agent Images and the VK-Local Sidecar
agent-images repo (shared base + children)
Matrix CI with cross-repo
repository_dispatch
VK-local sidecar (shared /home/claude PVC)
Lockstep bumper PR in frank— Virtual Machines — upcoming
KubeVirt (VMs as pods)
CDI disk image import
KubeVirt Manager UI
Longhorn-backed DataVolumes
Let’s start building.
